hydraulic Synchronous gear Flow divider

China hydraulic Synchronous gear Flow divider supplier

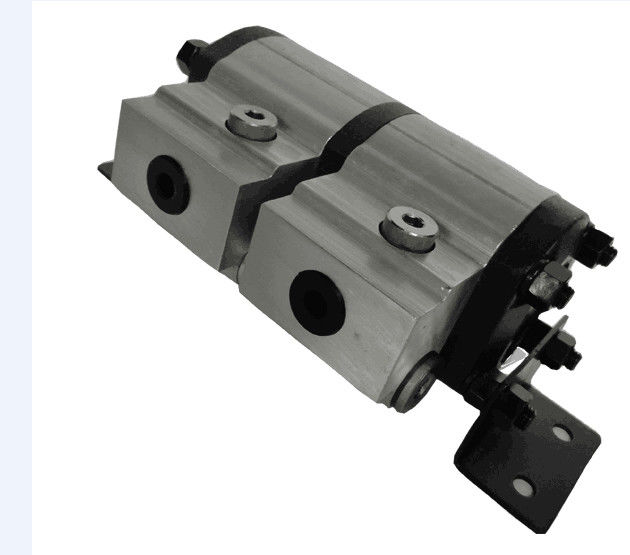

Large Image :  hydraulic Synchronous gear Flow divider

Product Details:

Place of Origin: China
Brand Name: ZIMO
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: $500
Packaging Details: wooden box
Delivery Time: 15days
Payment Terms: T/T,Western union,LC
Supply Ability: 9999pcs/day
Contact Now
Detailed Product Description

We are a manufactory and can supply hydraulic Synchronous gear Flow divider as your requested.

flow divider 2MF03L035( more section flow divider; flow motor)



DISPLACEMENT:  4.24 Ml.



SAEport: inlet: SAE10

              outlet: SAE10



Minimum (Flow/sec): GPM: 2.5

                                LPM: 9.5



MAXIMUM(Flow/sec): GPM: 5

                                 LPM: 18.9



Cont.diff (Between pressure): PSI: 1800

                                           BAR: 124



MAXIMUM(Outlet pressure): PSI: 3500

                                          BAR:



FLOW DIVIDER -

1FD ±1.5%—±2%

2FD ±1.5%—±2%

16-19bar

11-14bar

Number code Flow accuracy Pressure drop

Introduction of Flow Divider

Two or several gear motors can be combined to flow divider after being connected by coupling. It guarantees synchronous operation and accuracy of power element like cylinder (Its principle drawing is as follows), hydraulic liquid from the pipe is input into the inlet port and the same amount liquid is distributed to the outlet port by the rotation of gears that with same specification . Obviously, accuracy of flow divider is up to accuracy of gears and relative spare parts.

hydraulic Synchronous gear Flow divider
